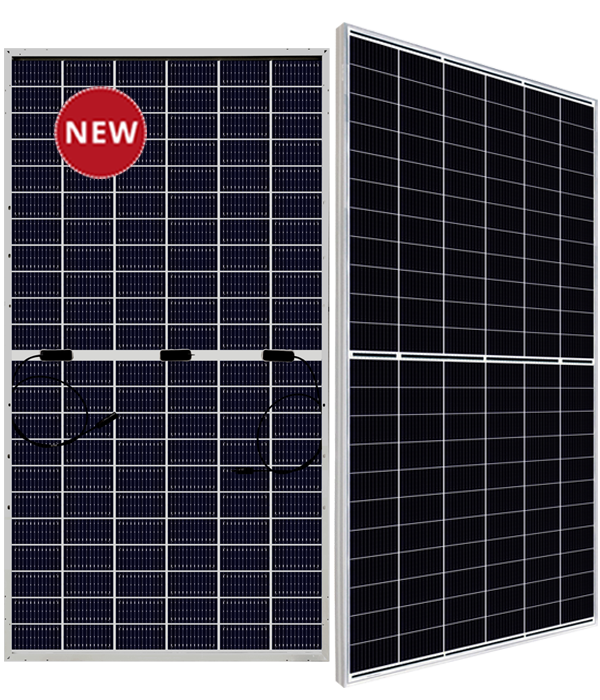

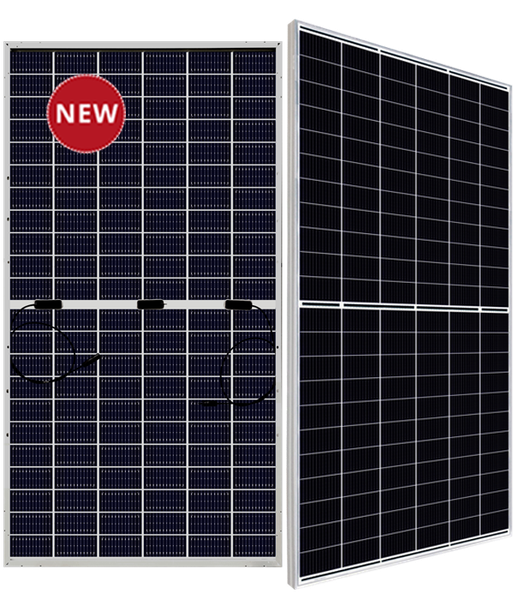

Tấm pin Canadian BiHiKu7 Bifacial High Power Dual Cell PERC Module

Thương hiệu: Canadian

Tình trạng: Còn hàng

Liên hệ

210 mm wafer + 132 / 120 dual cell + PERC technology
Front side power up to 655 W
25.7% more energy yield in the lifetime
8.9% LCOE reduction because of higher energy yield and lower system cost ·
Compatible with mainstream trackers
Up to 50% lower degradation LID / LeTID mitigation
Excellent hot spot performance
Better shading tolerance

Vận chuyển

Hỗ trợ vận chuyển tuỳ theo thoả thuận đơn hàng

Thanh toán nhanh

Hỗ trợ thanh toán tiền mặt, thẻ visa tất cả các ngân hàng

Chăm sóc 24/7

Hỗ trợ chăm sóc khách hàng 24/7

Uy tín thương hiệu

Thiên Năng Tecch là thương hiệu được yêu thích và lựa chọn

Thông số kỹ thuật
Chính sách
Đánh giá sản phẩm

* 12 years enhanced product warranty on materials and workmanship * 30 years linear power output warranty According to the applicable Canadian Solar Limited Warranty Statement.

Bifacial module up to 655 W

· 210 mm wafer + 132 / 120 dual cell + PERC technology

· Front side power up to 655 W

Lower BOS cost and LCOE

· 25.7% more energy yield in the lifetime

· 8.9% LCOE reduction because of higher energy yield and lower system cost ·

· Compatible with mainstream trackers

Enhanced reliability

· Up to 50% lower degradation LID / LeTID mitigation

· Excellent hot spot performance · Better shading tolerance

MECHANICAL DATA
Specification Data

Cell Type	Mono-crystalline
Cell Arrangement	144 [2 X (12 X 6) ]
Dimensions	2132 ˣ 1048 ˣ 30 mm (83.9 ˣ 41.3 ˣ 1.2 in)
Weight	28.4 kg (62.6 lbs)
Front / Back Glass	2.0 mm heat strengthened glass
Frame	Anodized aluminium alloy
J-Box	IP68, 3 diodes
Cable	4.0 mm² (IEC), 12 AWG (UL)
Cable Length (Including Connector)	400 mm (15.7 in) (+) / 280 mm (11.0 in) (-) or customized length*
Connector	T4 series or H4 UTX or MC4-EVO2
Per Pallet	33 pieces

Per Container (40' HQ) 660 pieces or 561 pieces (only for US)

TEMPERATURE CHARACTERISTICS

Specification	Data
Temperature Coefficient (Pmax)	-0.35 % / °C
Temperature Coefficient (Voc)	-0.27 % / °C
Temperature Coefficient (Isc)	0.05 % / °C

Nominal Module Operating Temperature 41 ± 3°C

PRODUCT CERTIFICATES*

ISO 9001:2015 / Quality management system ISO 14001:2015 / Standards for environmental management system ISO 45001: 2018 / International standards for occupational health & safety

MANAGEMENT SYSTEM CERTIFICATES*

IEC 61215 / IEC 61730 / CE / MCS / INMETRO FSEC (US Florida) / UL 61730 / IEC 61701 / IEC 62716 / IEC 60068-2-68 Take-e-way

CSI Solar Co., Ltd. is committed to providing high quality solar products, solar system solutions and services to customers around the world. Canadian Solar was recognized as the No. 1 module supplier for quality and performance/price ratio in the IHS Module Customer Insight Survey, and is a leading PV project developer and manufacturer of solar modules, with over 50 GW deployed around the world since 2001.
